JW Speaker: 8630-EV 12/24V Highbeam /Lowbeam DOT
JW Speaker: 8630-EV 12/24V Highbeam /Lowbeam DOT

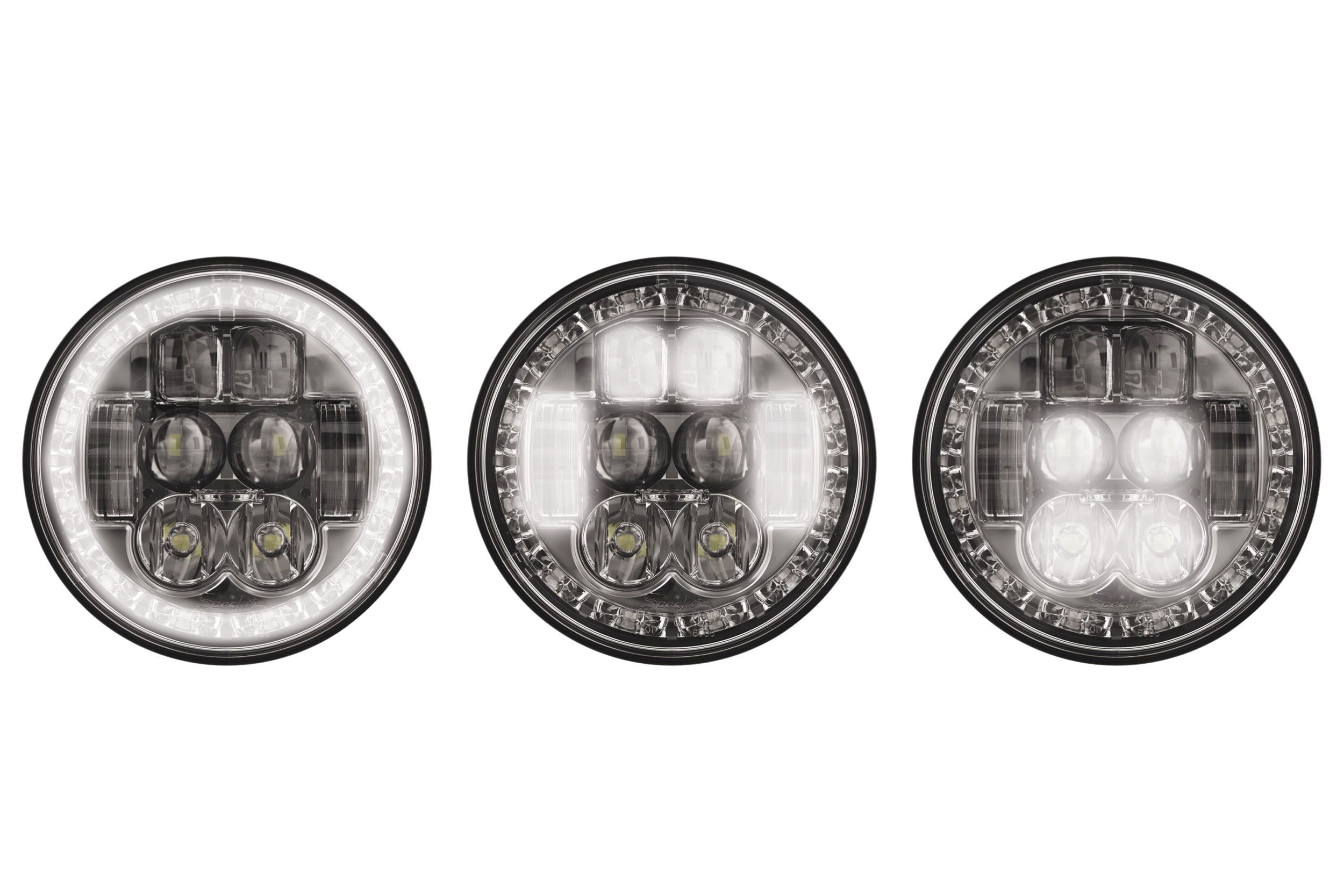

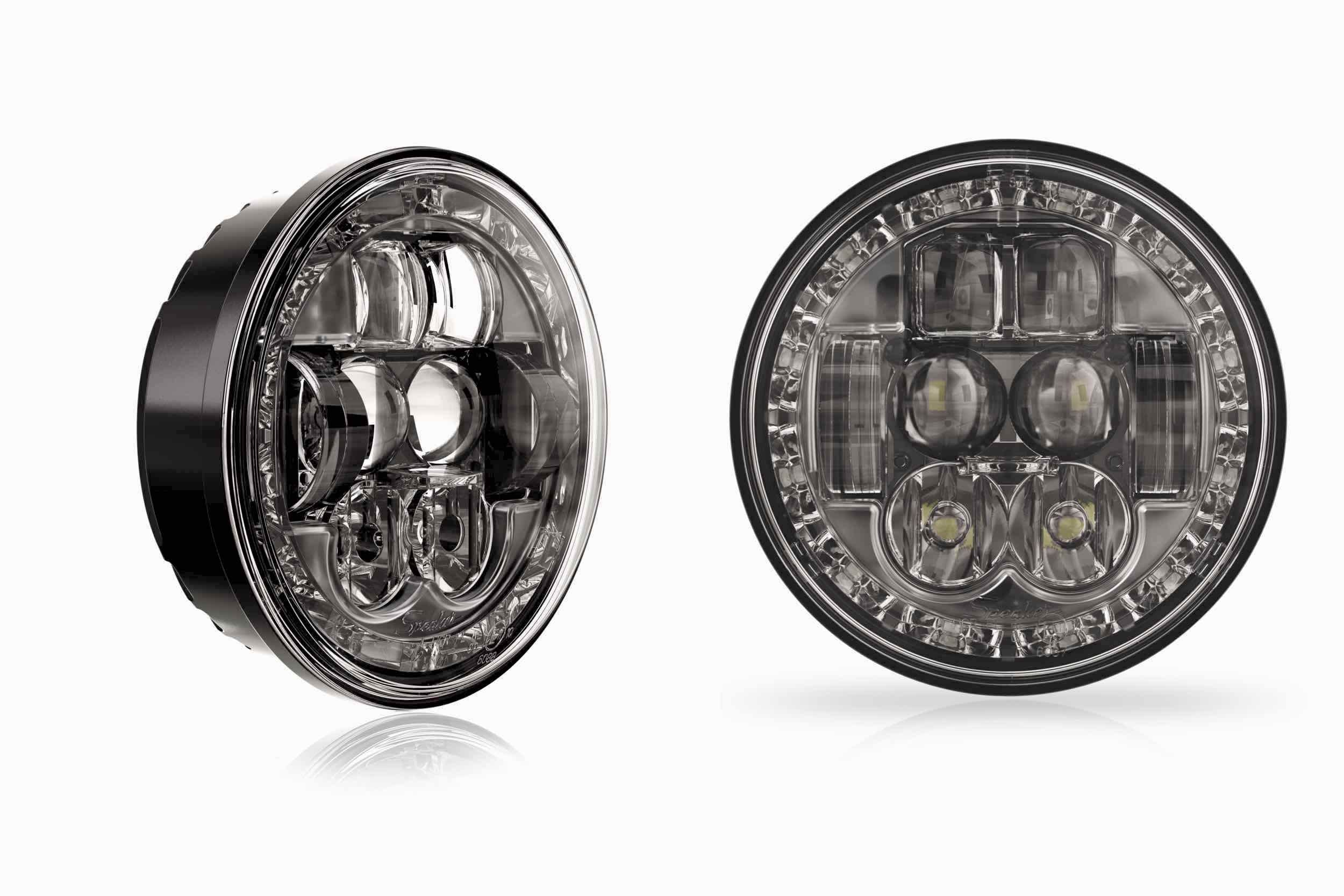

Designed for OEMs and aftermarket customers alike, the Model 8630 Evolution offers an upgraded replacement solution for 5.75in (PAR46) sealed beam headlights. Using high-quality LEDs to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions. Features: Combined high and low beam functions, Newer design boasts a 50% increase in high beam intensity, Easy plug and play installation with Delphi wire connector, Front position and DRL functions utilize a new outer ring at high intensities, ECE versions (not for use in the U.S.) feature DRL & FP functions.

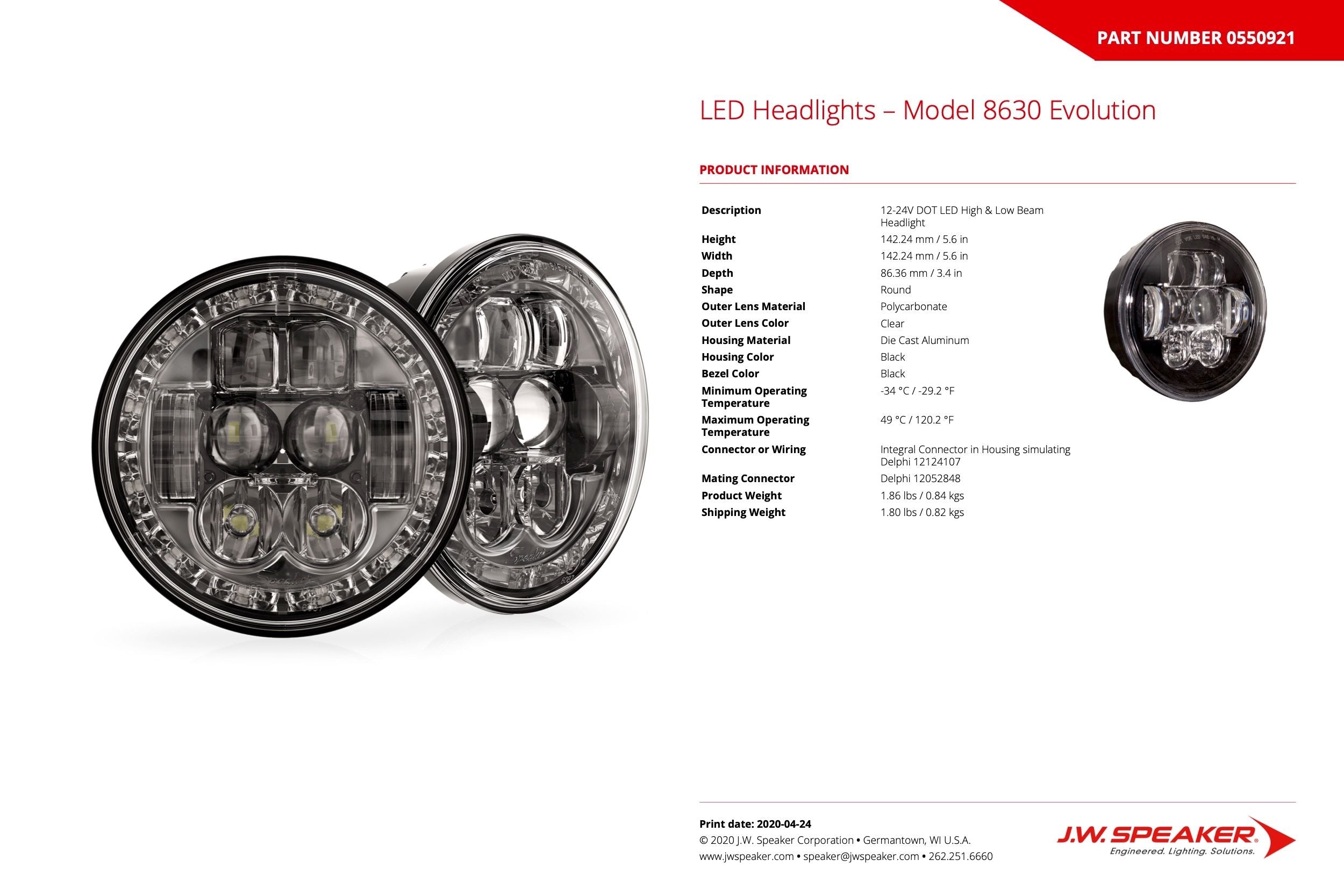

Technical Specifications
- Material: Polycarbonate (Lens), Aluminum (Housing)
- Input Voltage: 12-24V DC
- Input: Delphi 12124107
- Current: 2.2A Low, 3.5A High @ 12V DC
- Dimensions: 142.24mm / 5.6in H, 142.24mm / 5.6in L, 86.36mm / 3.4in D
What's Included
- Headlight: 1x JW Speaker Model 8630 LED Headlight
- Warranty: Lifetime Limited
California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
